SAML (Software Architecture Modeling Language) Guide

Overview

SAML (Software Architecture Modeling Language) is used to model and simulate software architectures, particularly in IoT-based scenarios. It allows users to define components, interactions, and behaviors in a structured manner. This guide provides a step-by-step approach to using SAML for designing a temperature sensor-based automation system.

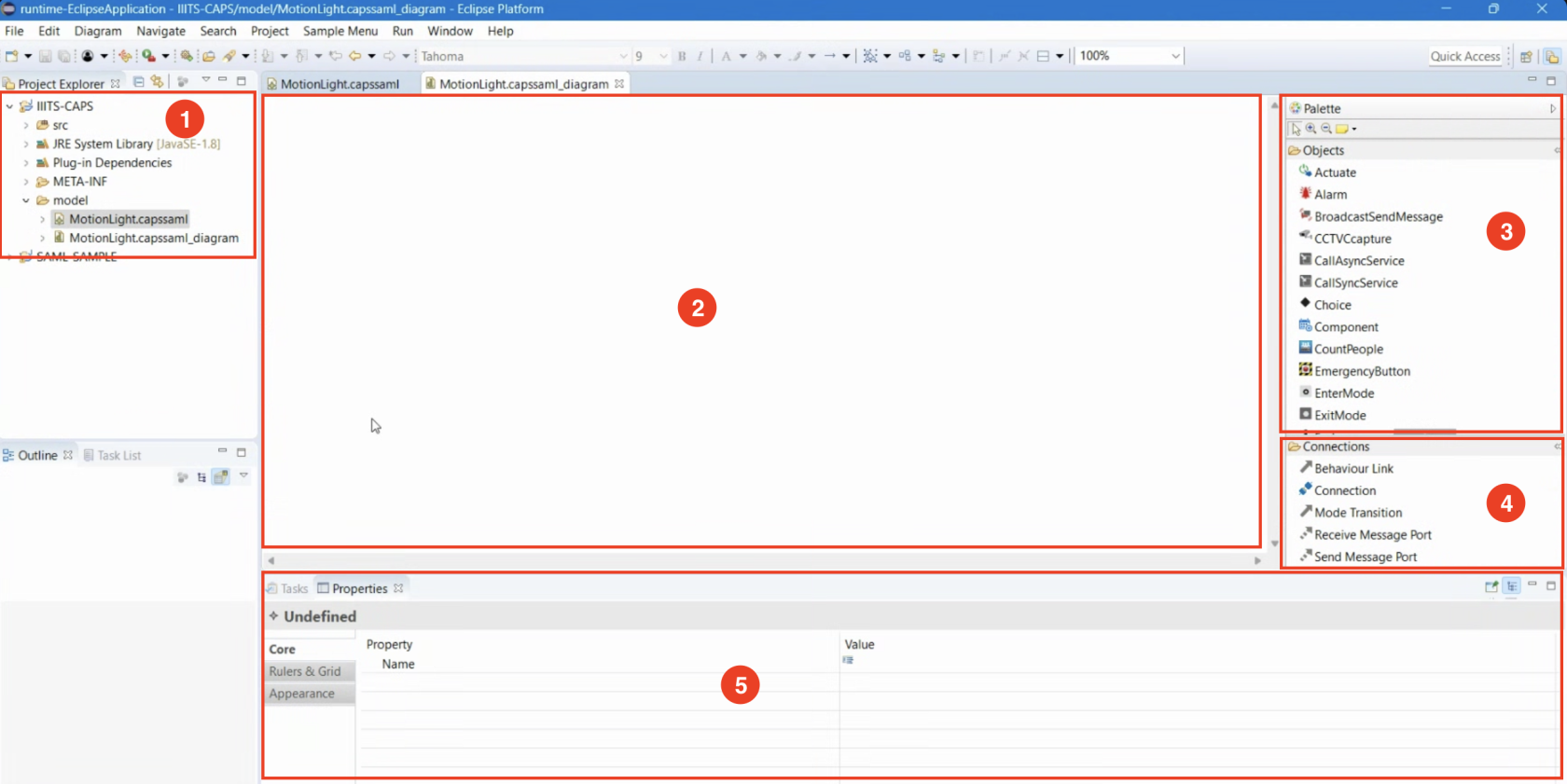

CAPS Environment in Eclipse

image-1746137604416.37.16 AM.png

  1. Folder Viewer (on the left)
  2. Diagram Canvas (in the center)
  3. Pallate(on the right)
  4. Connections(on the right)
  5. Properties Panel(at the bottom)
Folder Viewer

This displays the file structure. It contains your SAML project, and there is a folder called ‘model’ where you can create your SAML models.

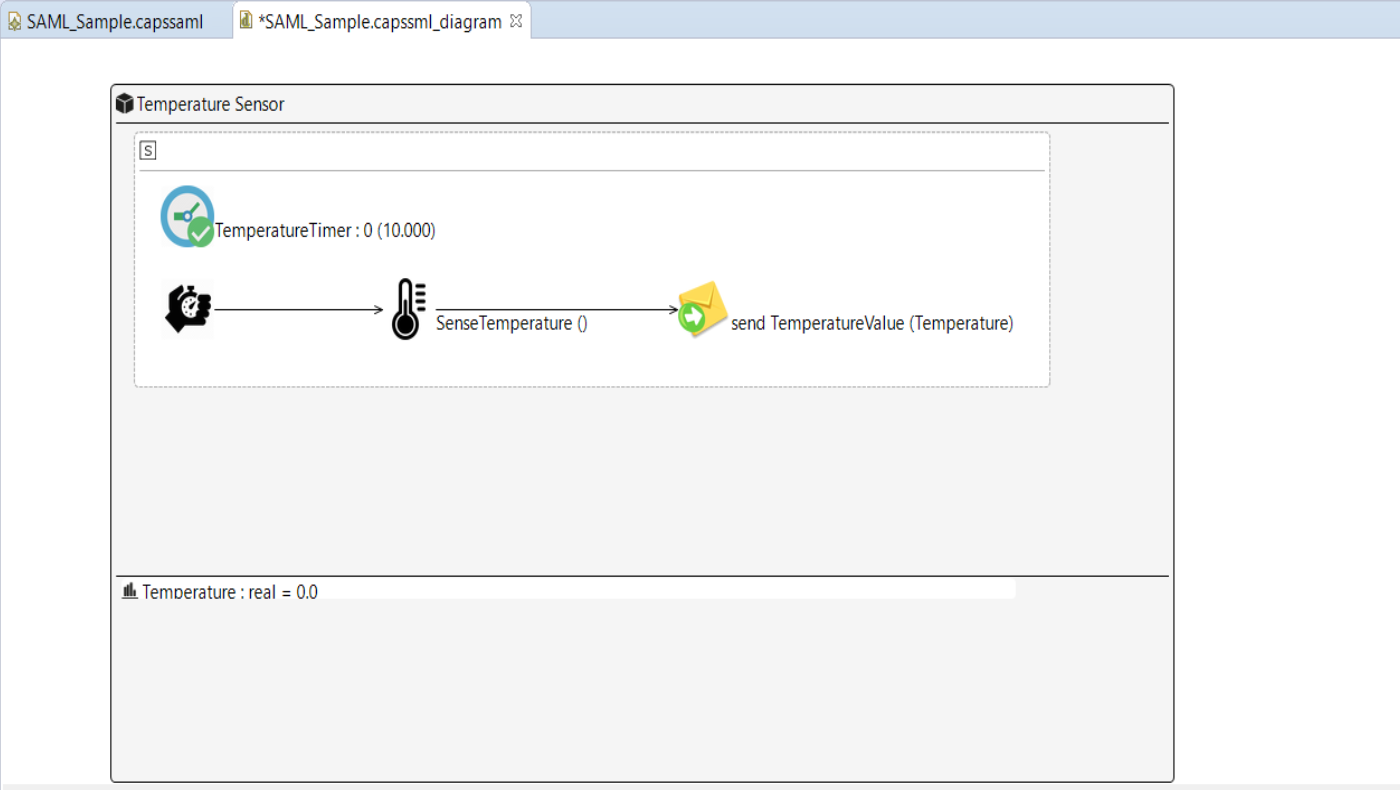

Diagram Canvas

Items can be taken from the palette and connections to model our SAML.

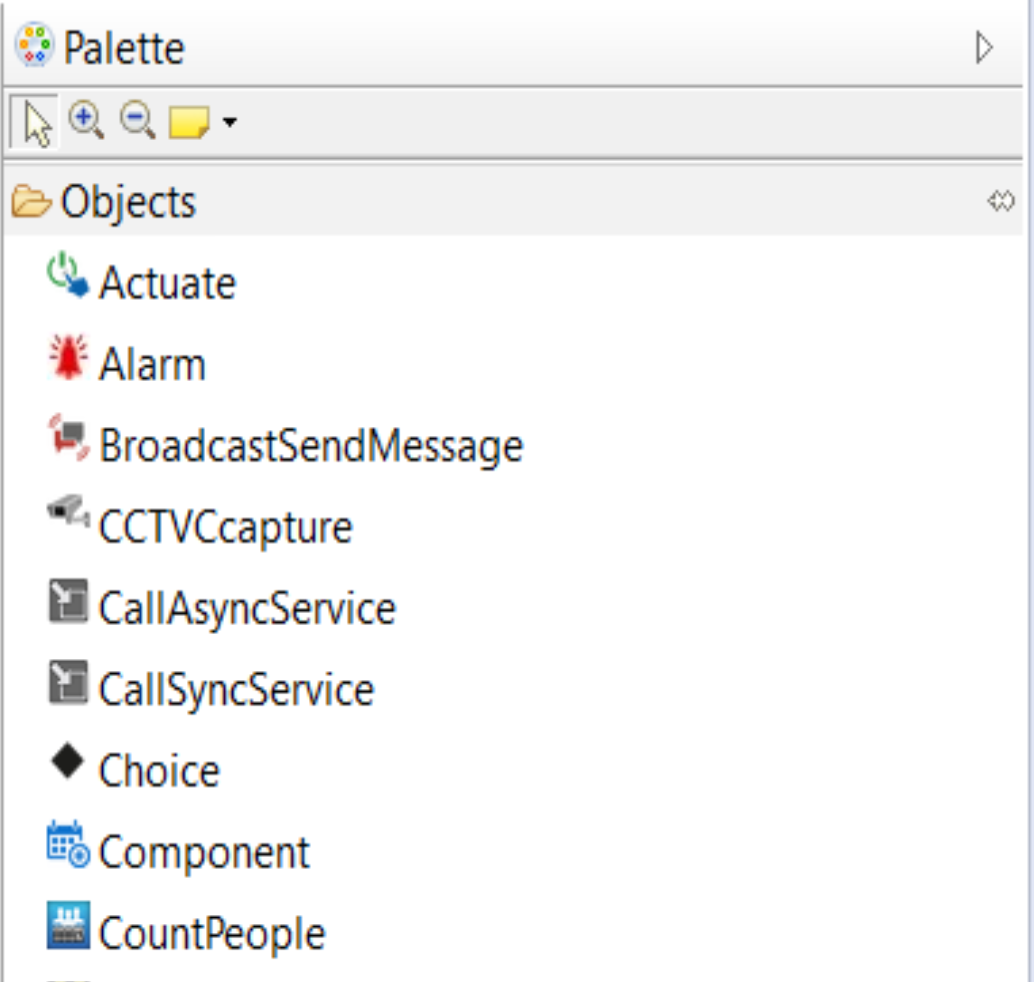

Pallate

Pallate contains all the components required for the architecture, such as sensors, timers etc

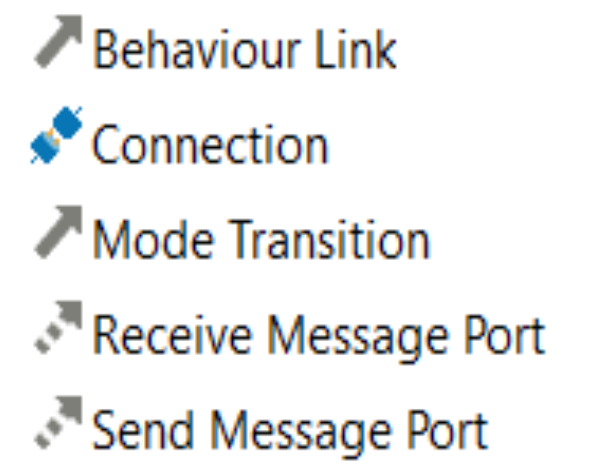

Connections

Types of connections between the components can be selected from here.

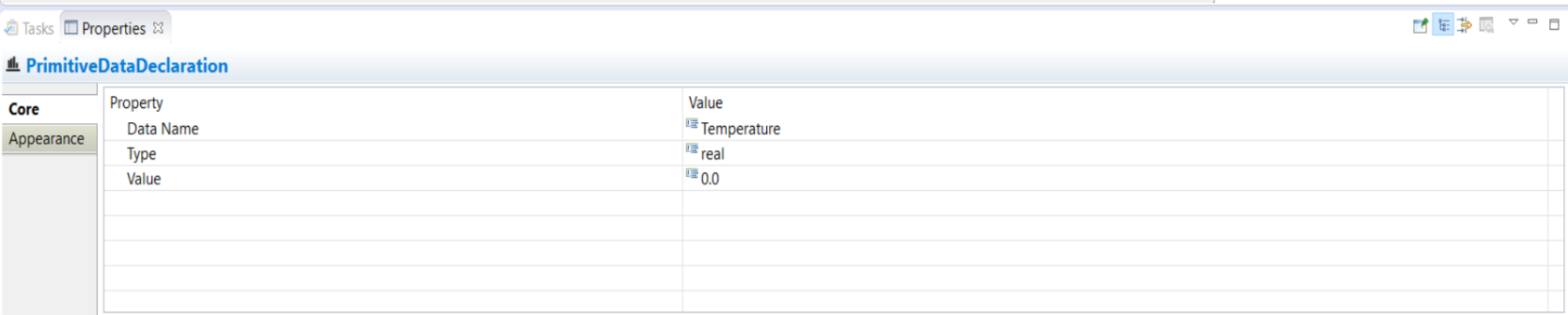

Properties

Configure the properties of the components used for modelling,
